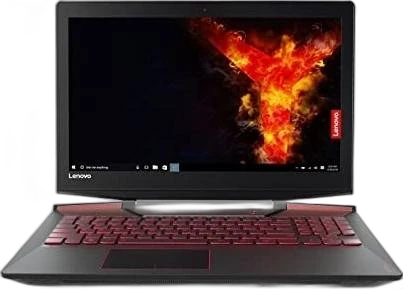

Lenovo Legion Y520-15IKBN
Quick specifications
- Processor Model
- Intel Core i5 7300HQ 2.5GHz
- GPU Model
- Nvidia GeForce GTX 1050
- Installed Memory
- 8 GB
- Storage Capacity
- 128 GB
- Display Size
- 15.6 inch
- Display Resolution
- 1920 x 1080
Lenovo Y520 Laptops specifications
General
- Brand
- Lenovo
- Product Family
- Legion
- Model
- Legion Y520-15IKBN
- Model Number
- Lenovo Legion Y520-15IKBN
- Launch Year
- 2017 year
- Form Factor
- Clamshell
- Laptop Category
- Gaming
- Operating System
- Windows 10
- Operating System Architecture
- 64-bit
Processor
- Processor Manufacturer
- Intel
- Processor Family
- Intel Core i5
- Processor Model
- Intel Core i5 7300HQ 2.5GHz
- Processor Generation
- 7th Gen
- CPU Architecture
- x86-64
- CPU Process Node
- 14 nm
- CPU Cores
- 4 cores
- Efficiency Cores
- 0 cores
- CPU Threads
- 4 threads
- CPU Base Clock
- 2.5 GHz
- CPU Max Boost Clock
- 3.5 GHz
- L3 Cache
- 6 MB
- Processor Base Power
- 45 W
Graphics
- Graphics Type
- Discrete
- GPU Manufacturer
- NVIDIA
- GPU Model
- Nvidia GeForce GTX 1050
- GPU Architecture
- Pascal
- Maximum External Resolution
- 3840 x 2160 at 30 Hz via HDMI
Memory
- Installed Memory
- 8 GB
- Maximum Memory
- 32 GB
- Memory Type
- DDR4
- Memory Speed
- 2400 MT/s
- Memory Form Factor
- SO-DIMM
- Memory Slots
- 2 slots
- Memory Upgradeable
- Yes
- Memory Channels
- Dual
Storage
- Primary Storage Type
- SSD
- Storage Capacity
- 128 GB
- Storage Interface
- PCIe NVMe + SATA
- Storage PCIe Generation
- PCIe 3.0
- Storage Form Factor
- M.2 + 2.5-inch
- Installed Storage Drives
- 2 drives
- Maximum Storage Drives
- 2 drives
- M.2 Storage Slots
- 1 slots
- 2.5-inch Drive Bay
- Yes
- Card Reader
- Yes
- Card Reader Formats
- MMC, SD, SDHC, SDXC
Display
- Display Size
- 15.6 inch
- Display Resolution
- 1920 x 1080
- Resolution Class
- FHD
- Display Technology
- IPS LCD
- Panel Type
- IPS
- Display Brightness
- 250 nits
- Aspect Ratio
- 16:9
- Display Finish
- Anti-glare
Camera & Biometrics
- Webcam Resolution
- 720p (1.0 MP)
Audio
- Speaker Configuration
- 2 Harman speakers
- Speaker Power
- 2 x 2 W
- Audio Technology
- Harman; Dolby Audio
- Microphone Configuration
- Dual-array microphone
- Audio Jack
- Yes
Keyboard & Input
- Keyboard Type
- 6-row keyboard
- Numeric Keypad
- Yes
- Touchpad Type
- One-piece touchpad
Wireless & Networking
- Wi-Fi Standard
- Wi-Fi 5
- Wi-Fi IEEE Standard
- 802.11ac
- Wi-Fi Bands
- Dual-band
- Bluetooth Version
- 4.1
- Ethernet
- Yes
- Ethernet Speed
- 1 GbE
- WWAN
- No
Ports & Expansion
- USB Type-A Port Count
- 3 ports
- USB Type-A Specifications
- 2x USB 3.1 Gen 1; 1x USB 2.0
- USB Type-C Port Count
- 1 ports
- USB Type-C Specifications
- 1x USB-C 3.1 Gen 1 / DisplayPort 1.2
- USB4 Port Count
- 0 ports
- Thunderbolt Port Count
- 0 ports
- HDMI Port Count
- 1 ports
- HDMI Version
- 1.4
- DisplayPort Output
- DisplayPort 1.2 via USB-C
- RJ-45 Port Count
- 1 ports
- 3.5 mm Audio Combo Port Count
- 1 ports
- SD Card Slot Count
- 1 ports
- microSD Card Slot Count
- 0 ports
- Smart Card Reader
- No
- Security Lock Slot
- Yes
- Internal PCIe Slots
- 1x M.2 storage slot
Battery & Power
- Battery Capacity
- 45 Wh
- Battery Cells
- 3 cells
- Battery Chemistry
- Li-polymer
- Battery Life
- 4 hours
- Battery Life Test Method
- Lenovo internal estimate
- Power Adapter
- 135 W
- Power Connector
- Barrel (round-tip)
Dimensions & Build
- Width
- 380 mm
- Depth
- 265 mm
- Thickness
- 25.8 mm
- Weight
- 2.5 kg
- Chassis Material
- PC/ABS
- Lid Material
- PC/ABS
- Base Material
- PC/ABS
Security & Manageability
- BIOS / UEFI Password Support
- Yes
- Drive Password Support
- Yes
- Smart Card Support
- No
Certifications & Sustainability
- ENERGY STAR
- ENERGY STAR 6.1
- EPEAT
- Silver
- RoHS Compliance
- Yes
Related research products
Comparisons (57)
Frequently asked questions about Lenovo Y520 Laptops
What are the key specifications of Legion Y520-15IKBN?
Key reference specs for Legion Y520-15IKBN include: CPU: Intel Core i5 7300HQ 2.5GHz; RAM: 8 GB; Storage: 128 GB; Display: 15.6 inch. See the specifications table on this page for the full list.
What processor does Legion Y520-15IKBN use?
According to the reference data, Legion Y520-15IKBN uses the Intel Core i5 7300HQ 2.5GHz processor.
How much RAM and storage does Legion Y520-15IKBN have?
RAM: 8 GB. Storage: 128 GB.
What are the display and graphics specs of Legion Y520-15IKBN?
Display: 15.6 inch. Graphics: Nvidia GeForce GTX 1050.
How should I use Legion Y520-15IKBN's specs for comparison?
Review the specifications table on this page, then compare Legion Y520-15IKBN with another reference model on Laptopedia comparison pages to see side-by-side technical differences.
